4 HORSE ANGLE LOAD GOOSENECK
Starting at $57,000

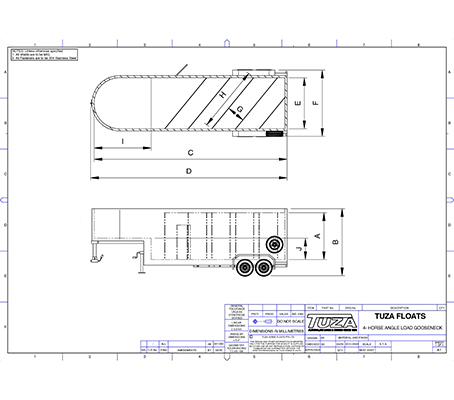

SPECIFICATIONS:
A. Internal Height: 7’3”/2210mm
B. Overall Height: 9’/2740mm
C. Internal Length: 24’/7316mm
D. Overall Length: 24’/7316mm
E. Internal Width: 6’3”/1910mm
F. Overall Width: 8’1”/2480mm
G. & H. Bay Size: 680mm x 2450mm**
Tare Weight: Starting from TBC*kg
ATM/GVM: 4500kg
External Specifications
- Fully enclosed with open sides and open above tailgate
- 600mm (H) stone guard checker plate protection to front
- Stone guard checker plate protection to front of mudguards
- Pinch weld to checker plate edging
- Colourbond tailgate
- External tie ups (2 on each side of float)
- Side gussets to float
- Large UV and tinted front window
- Easy lift gas strut tailgate with spring latches
- LED tail lights, clearance lights & number plate lamp
- 4 wheel electric brakes
- Brake away system
- Undercoated with premium vinyl etch (anti-rusting agent)
- Painted with premium industrial PPG ‘2 Pac’ paint
- Choice of vinyl striping from our Tuza designs
Internal Specification
- Australian engineered F27 hardwood flooring
- Industrial equine rubber matting internally and to tailgate
- 7’ stage (bed/storage area)
- Full height and lockable personal access door
- Fully welded and removable dividers
- Tuza telescopic and adjustable bays, allowing you to adjust to suit your horses
- Head dividers on centre dividers
- Padding to rump side of wall above kickboard
- 1000mm (H) timber kickboards
- Internal tie ups (2 in each bay)
- 12V internal light (works from the accessories of car)
Chassis & Framework
- Tuza Unique Flexi Cush Rubber Torsion Bar suspension
- Australian certified steel used on all floats
- Dura glide chassis (unique engineered ladder frame chassis)
- All structure of chassis, frame/skeleton and sheet work is fully welded for strength and durability (no pop rivets)
- Dura Gal Framework – (frame/skeleton)
- Sheet work: zinc anneal sheeting, pressed for extra strength
- Swivel away jockey wheel
- 10 tonne coupling and 4 tonne jack
- 4 wheel brakes with brake away unit
- 4 new truck tyres fitted with white rims
- 1 new spare truck tyre fitted to outside of float
