2 HORSE ANGLE LOAD

Starting at $23,000

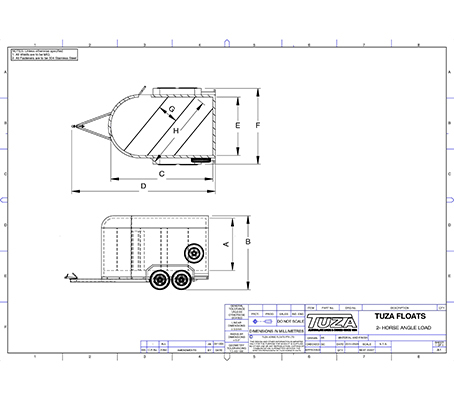

SPECIFICATIONS:

A. Internal Height: 7'3"/2210mm

B. Overall Height: 9'/2740mm*

C. Internal Length: 11'/3350mm

D. Overall Length: 15'5"/4700mm

E. Internal Width: 6'3"/1910mm

F. Overall Width: 8'1"/2480mm

G. & H. Bay Size: 680mm x 2450mm***

Tare Weight: Starting from 1100kg**

ATM/GVM: 3000kg

*OVERALL HEIGHT IS DETERMINED BY WHEELS USED

**TARE WEIGHT IS DETERMINED BY FINAL SPECIFICATIONS & THE INCLUSION OF ADD ON PACKS AND ACCESSORIES

***APPROXIMATE BAY SIZE

****OPTION TO UPGRADE ATM/ GVM.

External Specifications

  • Fully enclosed with open sides and open above tailgate
  • 600mm (H) stone guard checker plate protection to front
  • Stone guard checker plate protection to front of mudguards
  • Covered in A frame (stone guard checker plate)
  • Pinch weld to checker plate edging
  • Colourbond tailgate
  • External tie ups (2 on each side of float)
  • Side gussets to float
  • Large UV and tinted front window
  • Easy lift gas strut tailgate with spring latches
  • LED tail lights, clearance lights & number plate lamp
  • Undercoated with premium vinyl etch (anti-rusting agent)
  • Painted with premium industrial PPG ‘2 Pac’ paint
  • Choice of vinyl striping from our Tuza designs

Internal Specification

  • Australian engineered F27 hardwood flooring
  • Industrial equine rubber matting internally and to tailgate
  • Full height and lockable personal access door
  • Fully welded and removable dividers
  • Tuza telescopic and adjustable bays, allowing you to adjust to suit your horses
  • Head dividers on centre dividers
  • Padding to rump side of wall above kickboard
  • 1000mm (H) timber kickboards
  • Internal tie ups (2 in each bay)
  • 12V internal light (works from the accessories of car)

Chassis & Framework

  • Tuza Unique Flexi Cush Rubber Torsion Bar suspension
  • Australian certified steel used on all floats
  • Dura glide chassis (unique engineered ladder frame chassis)
  • All structure of chassis, frame/skeleton and sheet work is fully welded for strength and durability (no pop rivets)
  • Dura Gal Framework – (frame/skeleton)
  • Sheet work: zinc anneal sheeting, pressed for extra strength
  • Swivel away jockey wheel
  • 2 safety chains (stamped and certified)
  • 4 wheel brakes with brake away unit
  • 4 new truck tyres fitted with white rims
  • 1 new spare truck tyre fitted to outside of float

OPTIONS TO ADD:

Choose one of our add on packs or individual accessories to customise your new Tuza Float to suit your needs.

WARMBLOOD PACK
Option

WARMBLOOD PACK

Starting from $2,325

  • Extended internal height to 7’6”/2286mm
  • Extended internal length to suit large horses
  • Bays are approximately 700-750mm x 2650mm to accommodate 16 hand +

STORE MORE PACK
Option

STORE MORE PACK

Starting from $2,520

  • Swing out rear tack box or 3/5 front tack box
  • Storage fitted with 2 removable saddle racks
    and bridle hooks
  • Enclosed rug rack to rump side

LOCK UP PACK
Option

LOCK UP PACK

Starting from $2,950

  • 2 sliding windows with screens and locks
  • Lockable gas lift door or split barn doors
    to rear

ACCESSORIES
Option

ACCESSORIES

Contact us for our accessories list

Choose one of our add on packs or add
individual accessories to customise your new
Tuza Float to suit your needs.
