Tuza lite 2hsl specs
Starting at $14,000

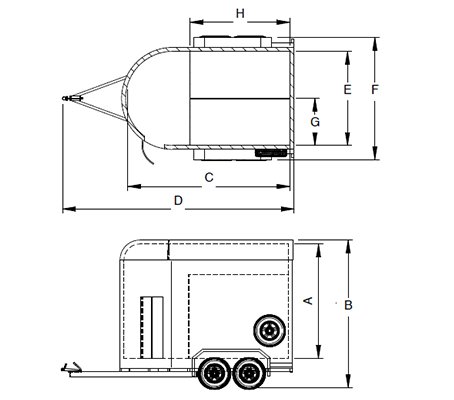

SPECIFICATIONS:
A. Internal Height: 7'3''/2210mm
B. Overall Height: 9'/2740mm*
C. Internal Length: 10'/3048mm
D. Overall Length: 13'7''/4148mm
E. Internal Width: 5'2''/1600mm
F. Overall Width: 6'9''/2057mm
G. & H. Bay Size: 730mm x 1950mm***
Tare Weight: Starting from 840kg**
ATM/GVM: 2000kg
*OVERALL HEIGHT IS DETERMINED BY WHEELS USED
**TARE WEIGHT IS DETERMINED BY FINAL SPECIFICATIONS & THE
INCLUSION OF ADD ON PACKS AND ACCESSORIES
***APPROXIMATE BAY SIZE.
External Specifications
- Fully enclosed with open sides
- External tie ups
- Side gussets to float
- Large UV and tinted front window
- Spring loaded tailgate with spring latches
- LED tail lights, clearance lights & number plate lamp
- Undercoated with premium vinyl etch (anti-rusting agent)
- Painted with premium industrial PPG ‘2 Pac’ paint
Internal Specification
- Australian engineered F27 hardwood flooring
- Industrial equine rubber matting internally and to tailgate
- Full height and lockable personal access door
- Fully welded and removable dividers
- Internal tie ups (2 in each bay)
Chassis & Framework
- Tuza Unique Flexi Cush Rubber Torsion Bar suspension
- Australian certified steel used on all floats
- Dura glide chassis (unique engineered ladder frame chassis)
- All structure of chassis, frame/skeleton and sheet work is fully welded for strength and durability (no pop rivets)
- Dura Gal Framework – (frame/skeleton)
- Sheet work: zinc anneal sheeting, pressed for extra strength
- Swivel away jockey wheel
- 2 safety chains (stamped and certified)
- Electric brakes to front axel
- 4 new truck tyres fitted with white rims
- 1 new spare truck tyre fitted to outside of float
